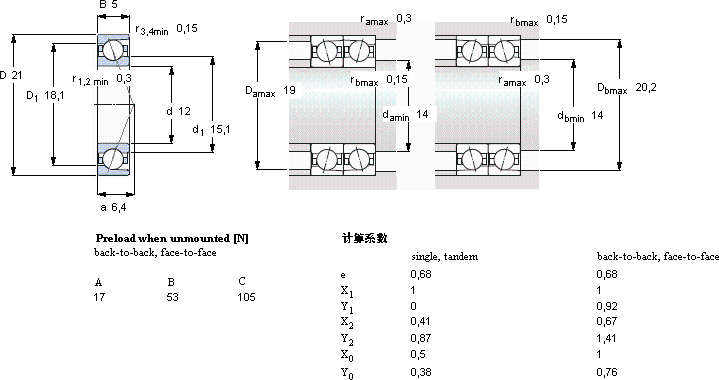

SKF71801ACD/HCP4轴承详细参数
发布时间:2026-04-14| 角接触球轴承, 精密, ACD, contact angle 25°, hybrid, super-precision | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 12 | 21 | 5 | 1,95 | 1,12 | 0,048 | 75000 | 110000 | 0,006 | 71801 ACD/HCP4 | SEA12 /NS 7CE3 | |
SKF71801ACD/HCP4超精密角接触球轴承P4级供应商
- 八零动力专业销售71801ACD/HCP4超精密角接触球轴承P4级，库存SKF71801ACD/HCP4大量现货，与SKF合作，咨询热线：022-58519723
- SKF71801ACD/HCP4它的加工精度，确保了机械运转的稳定性 该轴承的性能优越，极大地提高了设备的工作效率零误差起步没有轴承，现代机械将寸步难行,它的热处理工艺，增强了它的硬度和韧性 稳定持久,八零动力SKF超精密角接触球轴承P4级品种全，价格优，质量有保证！
